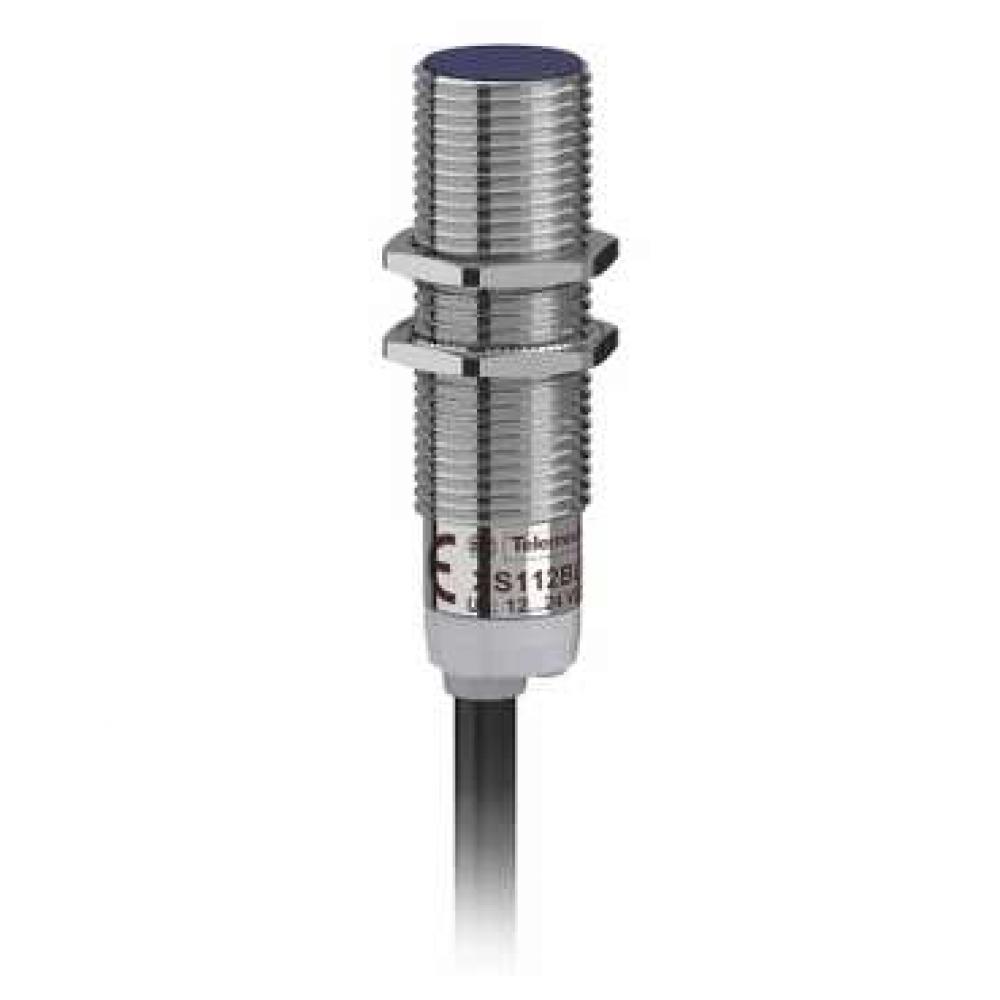

Schneider Electric XS112BLPBL2

Schneider Electric XS112BLPBL2 by Square D by Schneider Electric

Call for Price
  • Part Number: XS112BLPBL2
  • UPC: 00785901441267
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
SQD XS112BLPBL2 Sensor, Inductive p
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Proximity Sensors
Category Level 3:
Inductive, Cylinder-Probe Style
Amperage Rating:
<=10 mA
Category Name:
Inductive, Cylinder-Probe Style
Connection Type:
2 m Cable
Contact Configuration:
1NC
Country:
USA
Enclosure Type:
IP67
Environmental Conditions:
-40 to 185 deg F Storage Temperature, 25 gn Vibration Resistance, 50 gn Shock Resistance
Frequency Response:
<=2500 Hz
Length:
0.0
Material:
Nickel Plated Brass
Measuring Range:
0 to 1.6 mm
Mounting Type:
Flush
Output Type:
PNP
Response Time:
<=0.1 ms
Sensing Distance:
0.08 in
Sensing Method:
Inductive
Sensing Position:
Front
Series:
XS1
Size:
44 mm
Standard/Approvals:
California Provision: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause
Temperature Rating:
-25 to 70 Deg C
Type:
Fixed Cylindrical
Unspsc:
39122230
Voltage Rating:
10 to 36/12 to 24 VDC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Square D by Schneider Electric
