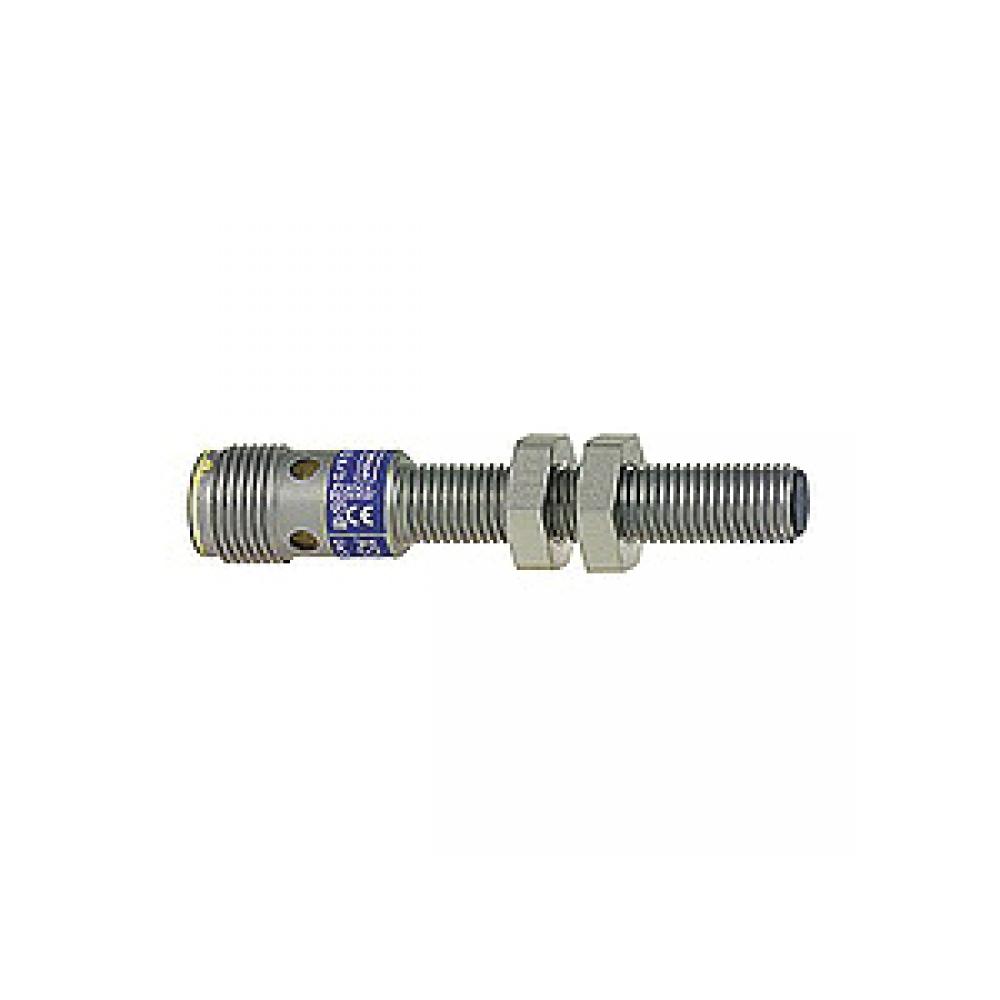

Schneider Electric OsiSense® XS508BLPAM12 Fixed Cylindrical Probe Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO, 10 to 58/12 to 48 VDC
Details
Category Level 3:
Inductive, Cylinder-Probe Style
Application:
Assembly Machines, Robotics, Machine-tools, Machining, Packaging, Materials Handling, Conveying, Food, Beverage Industry and General Purpose Applications
Category Name:
Inductive, Cylinder-Probe Style
Environmental Conditions:
-40 to 185 deg F Storage Temperature, 25 gn Amplitude= /- 2 mm Vibration Resistance, 50 gn Shock Resistance
-40 to 185 deg F Storage Temperature/25 gn Amplitude= /- 2 mm Vibration Resistance/50 gn Shock Resistance
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CE Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl
Temperature Rating:
-13 to 158
-13 to 158 deg F
Voltage Rating:
10 to 58/12 to 48
10 to 58/12 to 48 VDC
Manufactured By:
Square D by Schneider Electric
