Schneider Electric XS618B1MAL2

Schneider Electric XS618B1MAL2 by Square D by Schneider Electric

Call for Price
  • Part Number: XS618B1MAL2
  • UPC: 00785901757542
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

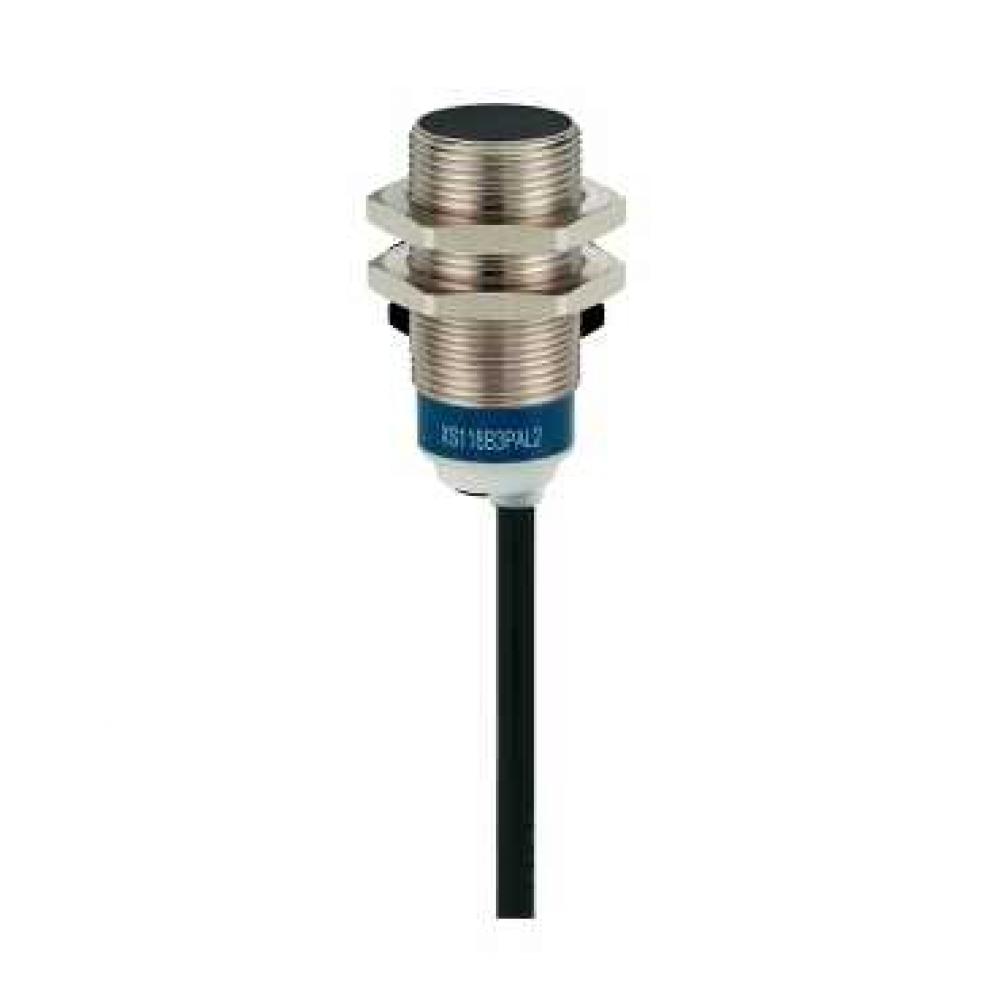

Schneider Electric OsiSense XS XS618B1MAL2 Proximity Sensor, Inductive, 1NO, 24/240 VAC/VDC
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Proximity Sensors
Category Level 3:
Inductive, Tubular Style
Amperage Rating:
300, 200
300/200 mA
Application:
General Purpose Applications
Category Name:
Inductive, Tubular Style
Connection Type:
Cable
Contact Configuration:
1NO
Country:
USA
Enclosure Type:
NEMA 4X/IP68/IP69K
Frequency Response:
1000 DC/25 AC
1000 DC/25 AC Hz
Length:
5.0
Material:
Metal
Measuring Range:
0 to 6.4
0 to 6.4 mm
Mounting Type:
Flush
Response Time:
0.5
0.5 ms
Sensing Distance:
8
8 mm
Sensing Method:
Inductive
Sensing Position:
Front

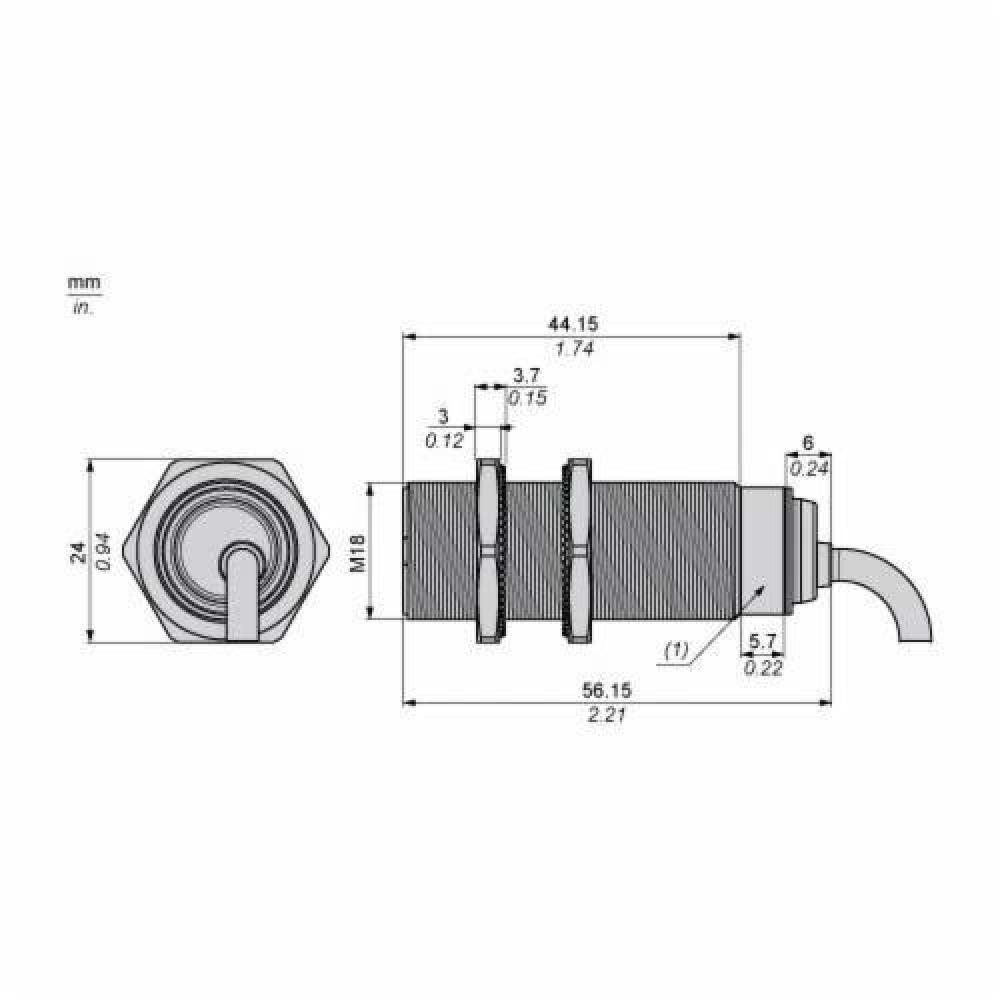

Size:
2.44 in L x 0.7 in W
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Marked|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl p
Temperature Rating:
-13 to 158
-13 to 158 deg F
Unspsc:
39122230
Voltage Rating:
24/240
24/240 VAC/VDC
Volume:
33.0
Weight:
0.0
Additional Information
Manufactured By:
Square D by Schneider Electric
