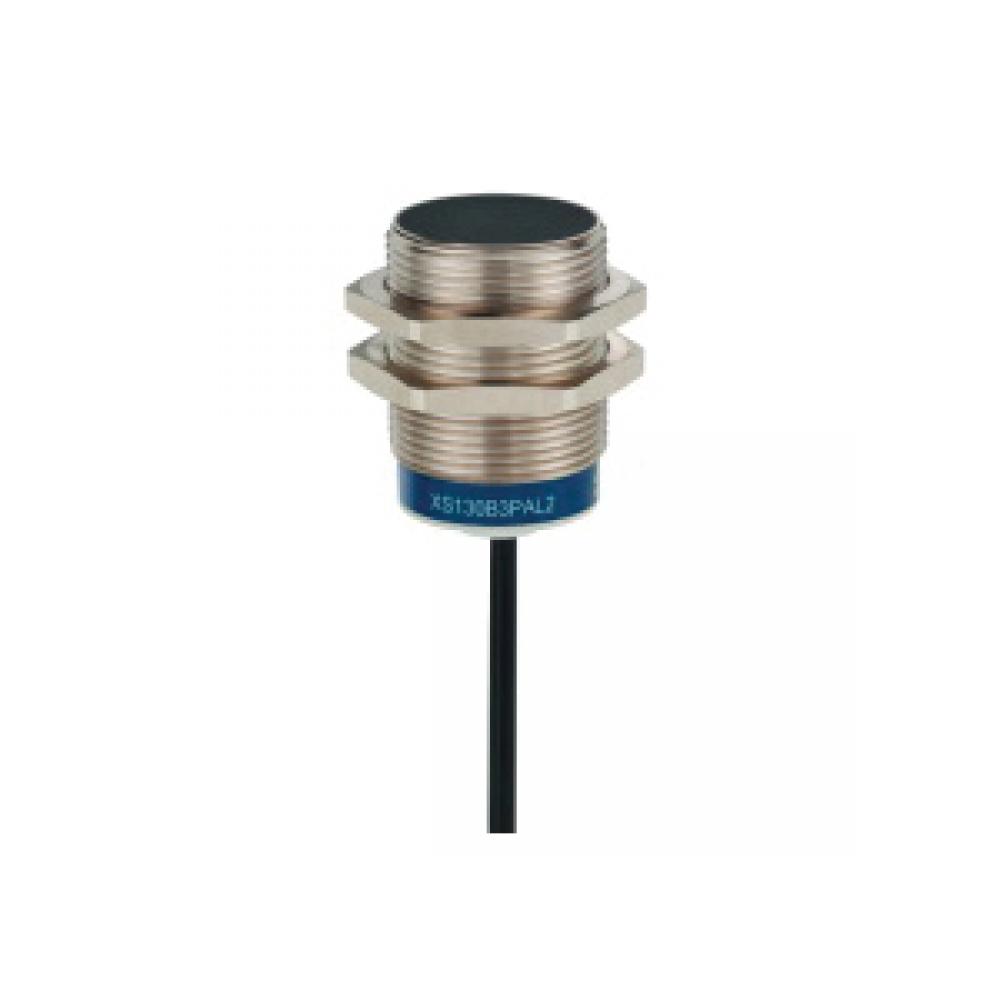

Schneider Electric Osiprox® XS630B1MAL2 Fixed Cylindrical Probe Proximity Sensor, Inductive, 1NO, 20 to 264 VAC/VDC, 24 to 240 VAC/VDC
Details
Category Level 3:
Inductive, Cylinder-Probe Style
Application:
Assembly Machines, Robotics, Machine-tools, Machining, Packaging, Materials Handling, Conveying, Food, Beverage Industry and General Purpose Applications
Category Name:
Inductive, Cylinder-Probe Style
Environmental Conditions:
-40 to 185 deg F Storage Temperature
-40 to 185 deg F Storage Temperature, 25 gn Amplitude= /- 2 mm Vibration Resistance, 50 gn Shock Resistance
-40 to 185 deg F Storage Temperature/25 gn Amplitude= /- 2 mm Vibration Resistance/50 gn Shock Resistance
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|CE Marked|PROP65 California Provision: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP)|which is known to the State of California to ca
Temperature Rating:
-13 to 158
-13 to 158 deg F
Voltage Rating:
20 to 264 VAC/VDC, 24 to 240 VAC/VDC
20 to 264 VAC/VDC/24 to 240 VAC/VDC
24 to 240
24 to 240 VAC/VDC
Manufactured By:
Square D by Schneider Electric
