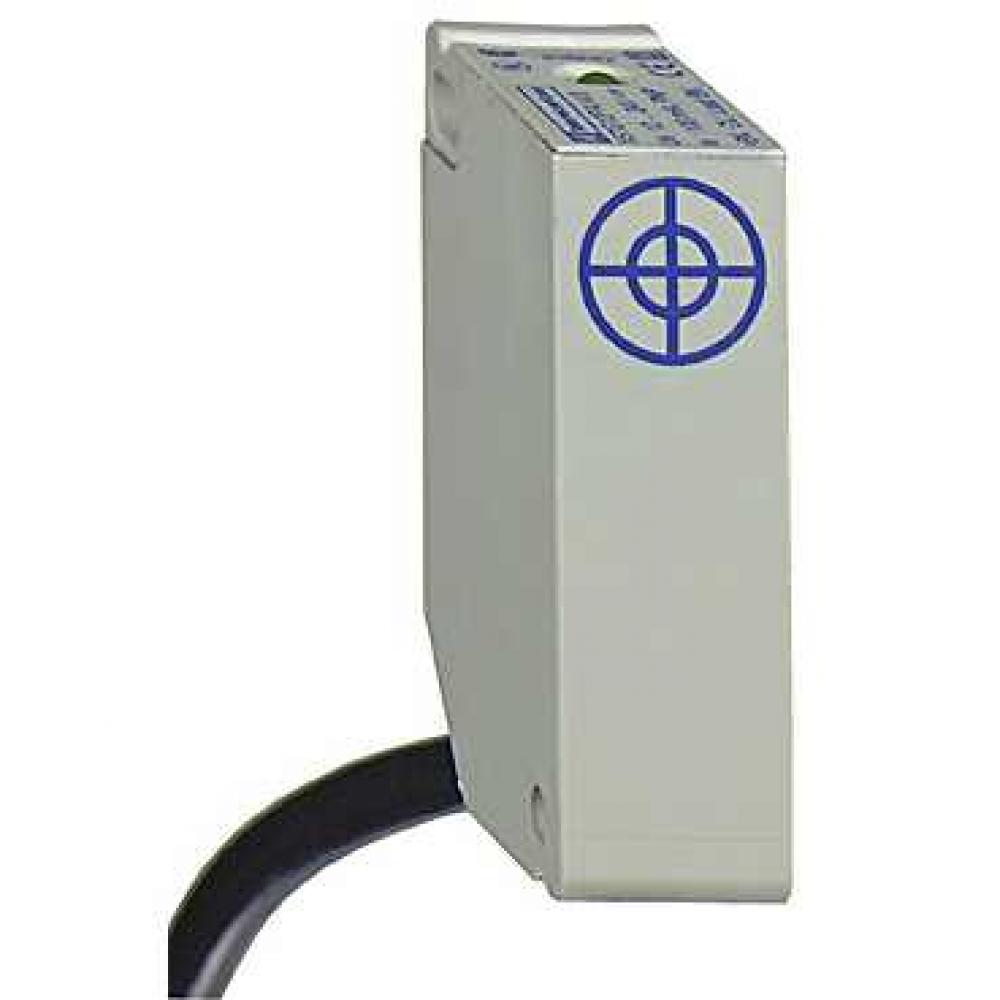

Schneider Electric XS7G12PA140

Schneider Electric XS7G12PA140 by Square D by Schneider Electric

Call for Price
  • Part Number: XS7G12PA140
  • UPC: 00785901776574
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
SQD XS7G12PA140 INDUCTIVE SENSOR 26
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Proximity Sensors
Category Level 3:
Inductive, Cylinder-Probe Style
Accuracy:
<=10%
Amperage Rating:
0 to 10 mA
Category Name:
Inductive, Cylinder-Probe Style
Connection Type:
2 m Cable
Contact Configuration:
1NO
Country:
USA
Enclosure Type:
IP67
Environmental Conditions:
-40 to 185 deg F Storage Temperature, 25 gn Vibration Resistance, 50 gn Shock Resistance
Frequency Response:
<=2000 Hz
Length:
6.0
Material:
Plastic
Measuring Range:
0 to 0.06 in
Mounting Type:
Flush
Output Type:
PNP
Response Time:
<=0.5 ms
Sensing Distance:
2 mm
Sensing Method:
Inductive
Sensing Position:
Lateral
Series:
XS7
Size:
40 mm H x 12 mm W x 26 mm D
Standard/Approvals:
California Provision: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause
Temperature Rating:
-25 to 70 Deg C
Type:
Fixed
Unspsc:
39122230
Voltage Rating:
10 to 30/12 to 24 VDC
Volume:
21.0
Weight:
0.0
Additional Information
Manufactured By:
Square D by Schneider Electric
