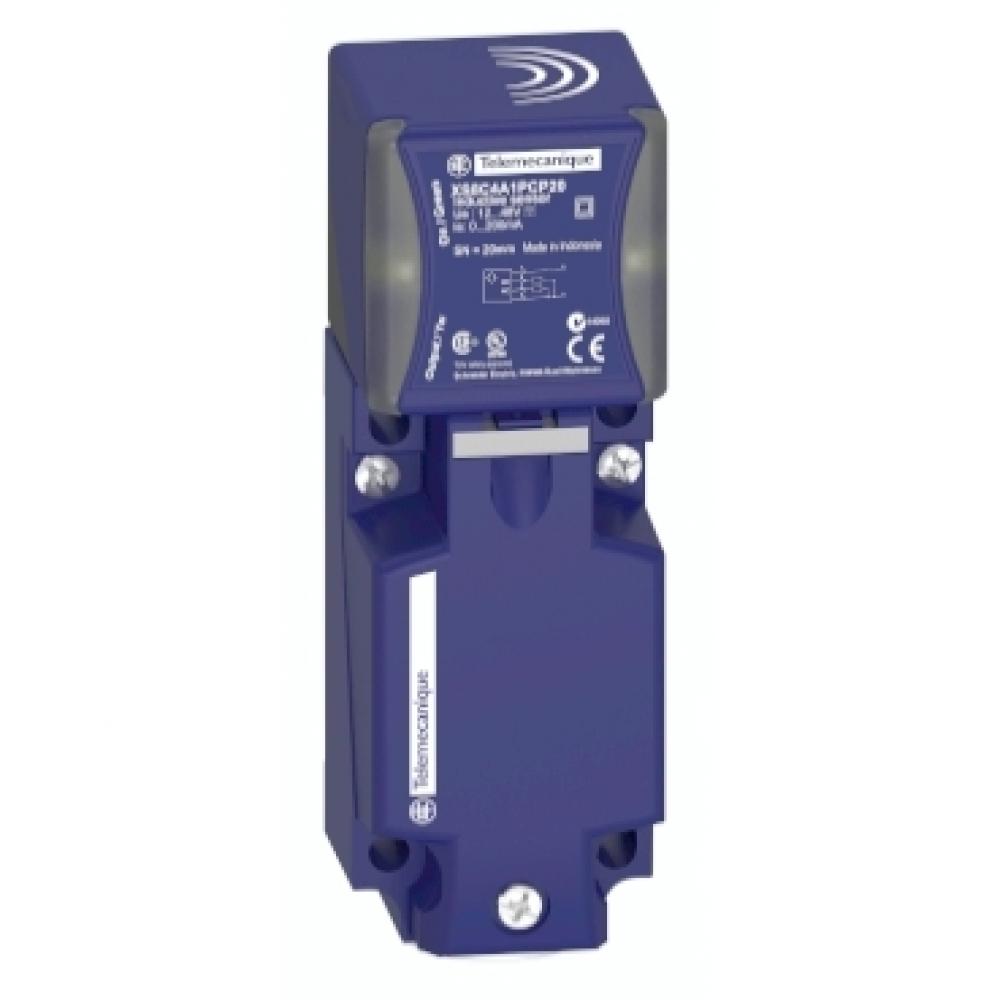

Schneider Electric XS8C4A4PCP20

Schneider Electric XS8C4A4PCP20 by Square D by Schneider Electric

Call for Price
  • Part Number: XS8C4A4PCP20
  • UPC: 00785901949732
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
SQD XS8C4A4PCP20 INDUCTIVE SENSOR P
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Proximity Sensors
Category Level 3:
Inductive, Cylinder-Probe Style
Accuracy:
<=3%
Amperage Rating:
0 to 15 mA
Category Name:
Inductive, Cylinder-Probe Style
Connection Type:
Screw Clamp
Contact Configuration:
1NO-1NC
Country:
USA
Enclosure Type:
IP65/IP67/IP69K
Environmental Conditions:
-40 to 185 deg F Storage Temperature, 25 gn Vibration Resistance, 50 gn Shock Resistance
Frequency Response:
<=200 Hz
Length:
2.0
Material:
PBT
Measuring Range:
0 to 1.26 in
Mounting Type:
Non-Flush
Output Type:
PNP
Response Time:
<=1.4 ms
Sensing Distance:
1.57 in
Sensing Method:
Inductive
Sensing Position:
5-Position Turret Head
Series:
XS8
Size:
40 mm H x 117 mm W x 40 mm H
Standard/Approvals:
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other r
Temperature Rating:
-25 to 70 Deg C
Type:
Fixed Flat Form
Unspsc:
39122230
Voltage Rating:
10 to 58/12 to 48 VDC
Volume:
18.0
Weight:
1.0
Additional Information
Manufactured By:
Square D by Schneider Electric
