Schneider Electric XX930A3A2M12

Schneider Electric XX930A3A2M12 by Square D by Schneider Electric

Call for Price
  • Part Number: XX930A3A2M12
  • UPC: 00785901633327
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

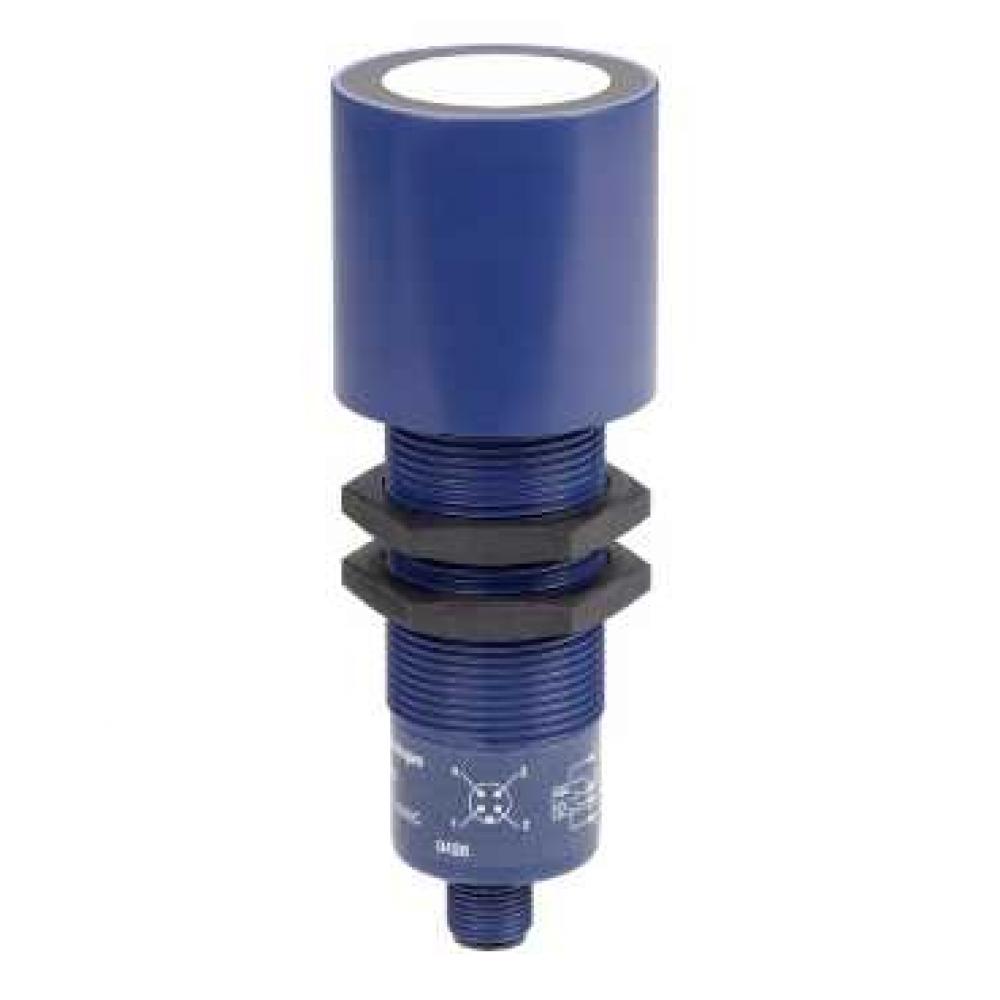

SQD XX930A3A2M12 ULTRASONIC SENSOR,
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Proximity Sensors
Category Level 3:
Ultrasonic Proximity Sensors
Accuracy:
2.54 %
Amperage Rating:
60 mA
Category Name:
Ultrasonic Proximity Sensors
Connection Type:
4-Pin M12 Male
Country:
USA
Enclosure Type:
IP67
Environmental Conditions:
-40 to 176 deg F Storage Temperature, 30 gn Shock Resistance
Frequency Response:
75 kHz
Length:
6.0
Material:
ULTEM®
Measuring Range:
0.98 to 26.25 ft
Output Type:
Analog
Sensing Distance:
26.25 ft
Sensing Method:
Diffuse/Ultrasonic
Series:
XX9
Size:
44 mm H x 44 mm W x 118 mm D
Standard/Approvals:
California Provision: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause
Temperature Rating:
-20 to 60 deg C
Type:
Cylindrical
Unspsc:
39122230
Voltage Rating:
14 to 28/15 to 24 VDC
Volume:
34.0
Weight:
0.0
Additional Information
Manufactured By:
Square D by Schneider Electric
