Thomas Betts 5343GRSG

Thomas Betts 5343GRSG by Thomas & Betts

Call for Price
  • Part Number: 5343GR-SG
  • UPC: 00786209927569
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

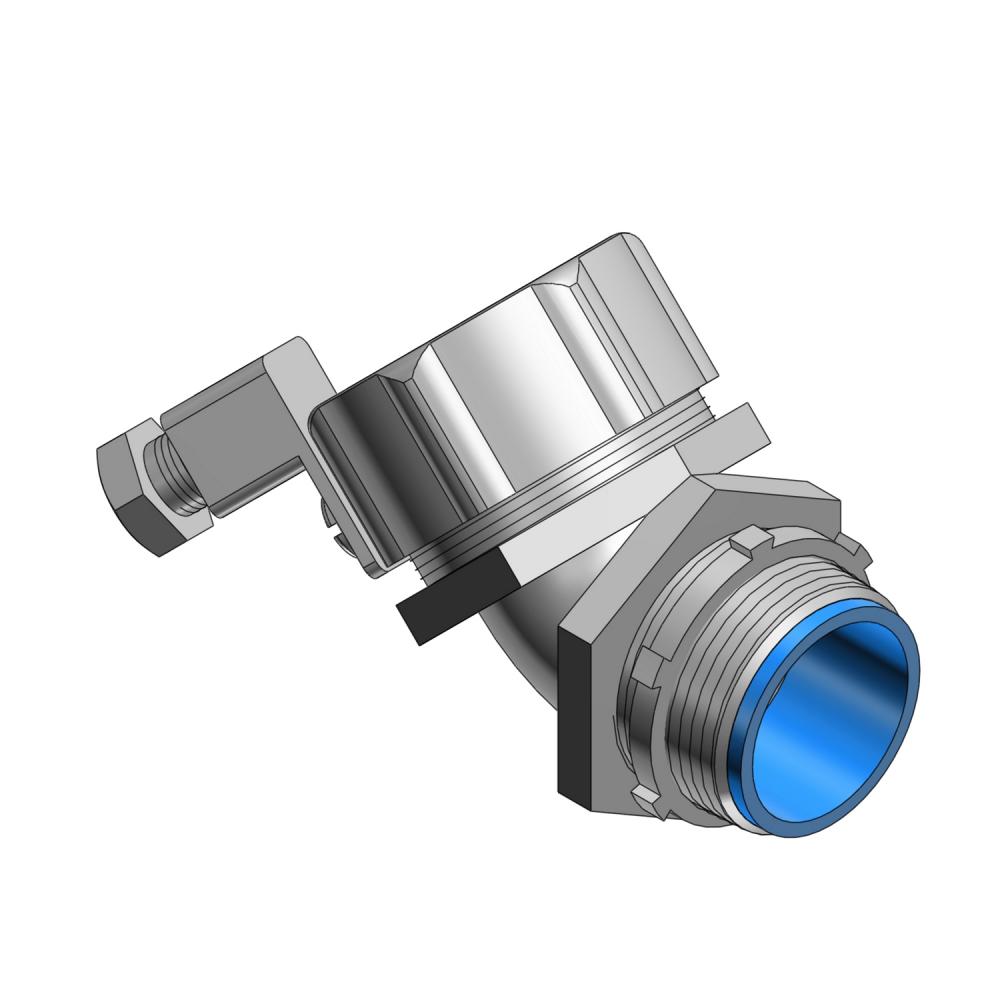

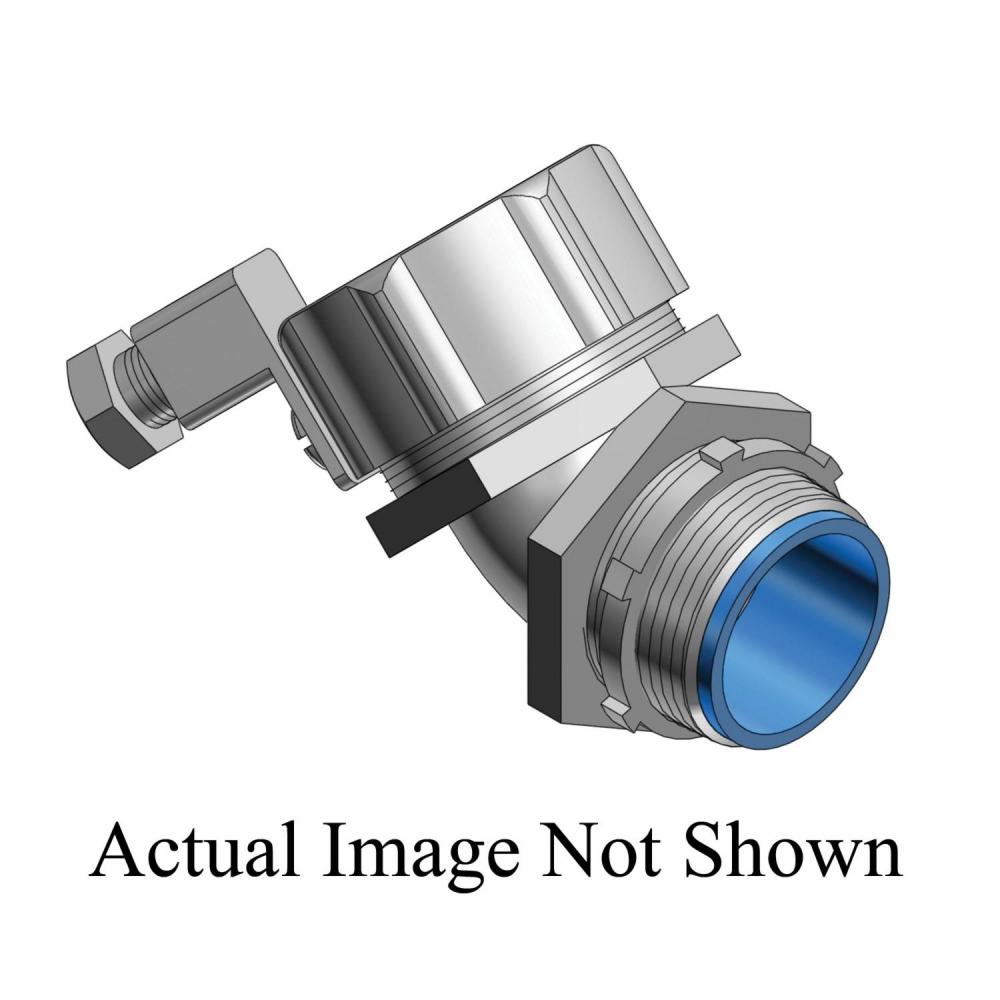

T&B® 5343GR-SG External Bonding Insulated Straight Liquidtight Grounding Connector With Sealing Gasket, Safe Edge® Ground Cone, Double Bevel Sealing Ring, 3/4 in Trade, 3/4 in Cable Openings, 45 deg, Malleable Iron, Chromate Coated/Electro-Plated Zinc
Specifications
Details
Category Level 1:
Conduit & Conduit Fittings
Category Level 2:
Liquidtight Flexible Conduit Fittings
Category Level 3:
Liquidtight Conduit Connectors
Angle:
45
45 deg
Application:
For positively bond conduit to box or enclosure
Cable Openings:
3/4
3/4 in
Category Name:
Liquidtight Conduit Connectors
Country:
USA
Dimensions:
1-21/32 in OD
Finish:
Chromate Coated/Electro-Plated Zinc
Length:
8.0
Material:
Malleable Iron
Series:
5300GR
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, UL File No. E3060, UL 467, 514B, CSA C22.2 File No.18.3, CSA C22.2 No. 41, CSA File No. LR2884, LR4484, NFPA 70-2008 (ANSI), JIC EGP1, JIC EMP1, Federal Specification W-F-406, Federal Standard H-28, IEC EN 61386-1, 2
Suitable For Use With:
Liquidtight Flexible Metal Conduit
Trade Size:
3/4
3/4 in
Type:
External Bonding Insulated Straight
Unspsc:
39121420
Volume:
0.0
Weight:
4.0
Additional Information
Manufactured By:
Thomas & Betts
