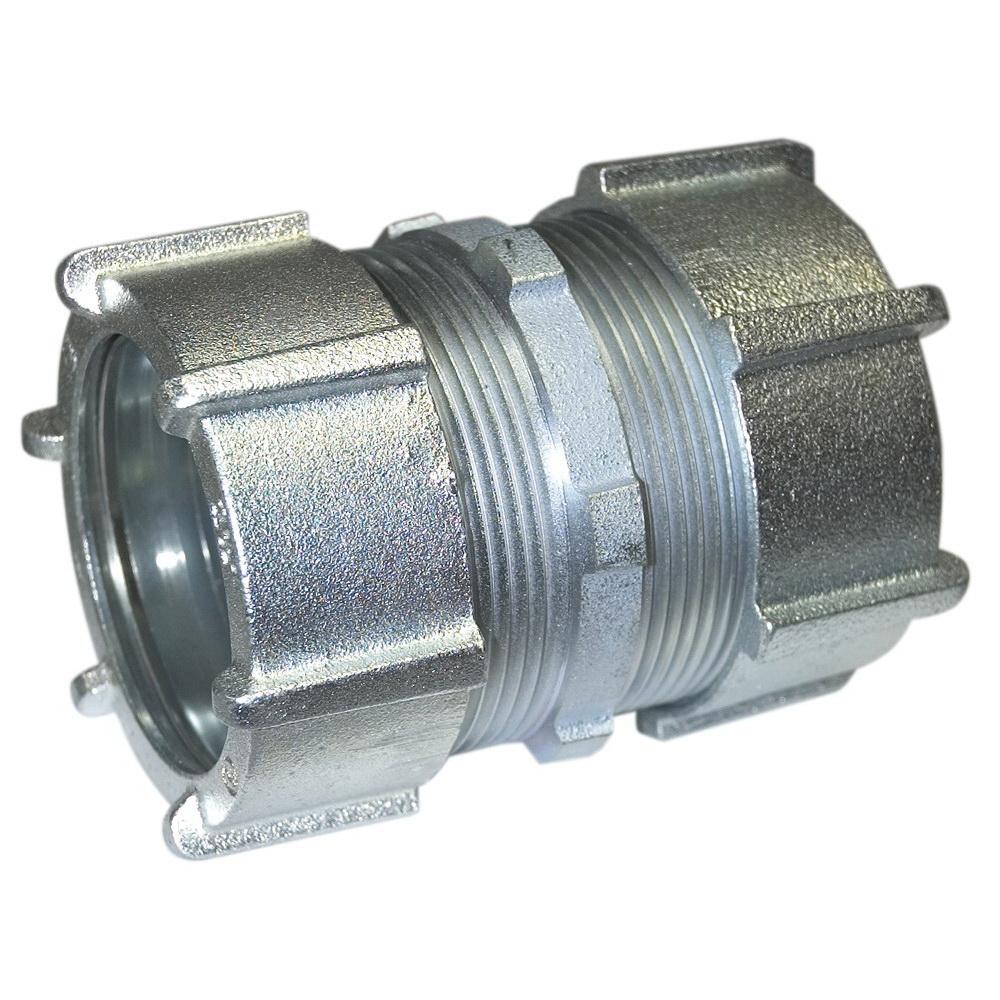

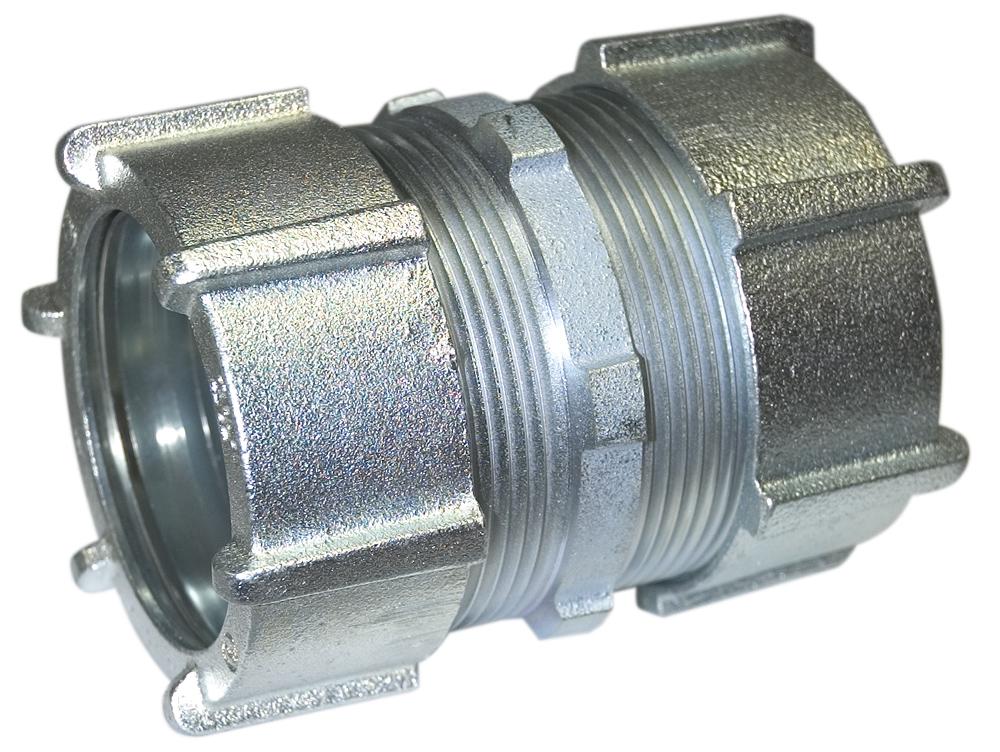

Topaz® 257 Compression Conduit Coupling, 2-1/2 in, For Use With Rigid/IMC Conduit to Steel Outlet Box/Metal Enclosure, Malleable Iron, Zinc Plated
Specifications
Details
Category Level 1:
Conduit & Conduit Fittings
Category Level 2:
Conduit Fittings
Category Level 3:
Conduit Couplings
Application:
Used to join two lengths unthreaded rigid/IMC conduit to steel outlet box or metal enclosure
Category Name:
Conduit Couplings
Country:
USA
Dimensions:
3.93 in OD x 5.75 in L
Finish:
Zinc Plated
Length:
6.0
Material:
Malleable Iron
Size:
2-1/2
2-1/2 in
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, UL 6 for Rigid Conduit, UL 514B, UL File No. E170258, cULus File No. E148716, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
Suitable For Use With:
Rigid/IMC Conduit to Steel Outlet Box/Metal Enclosure
