Topaz LB8CG

Topaz LB8CG by Topaz

Call for Price
  • Part Number: LB8CG
  • UPC: 00751338209114
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

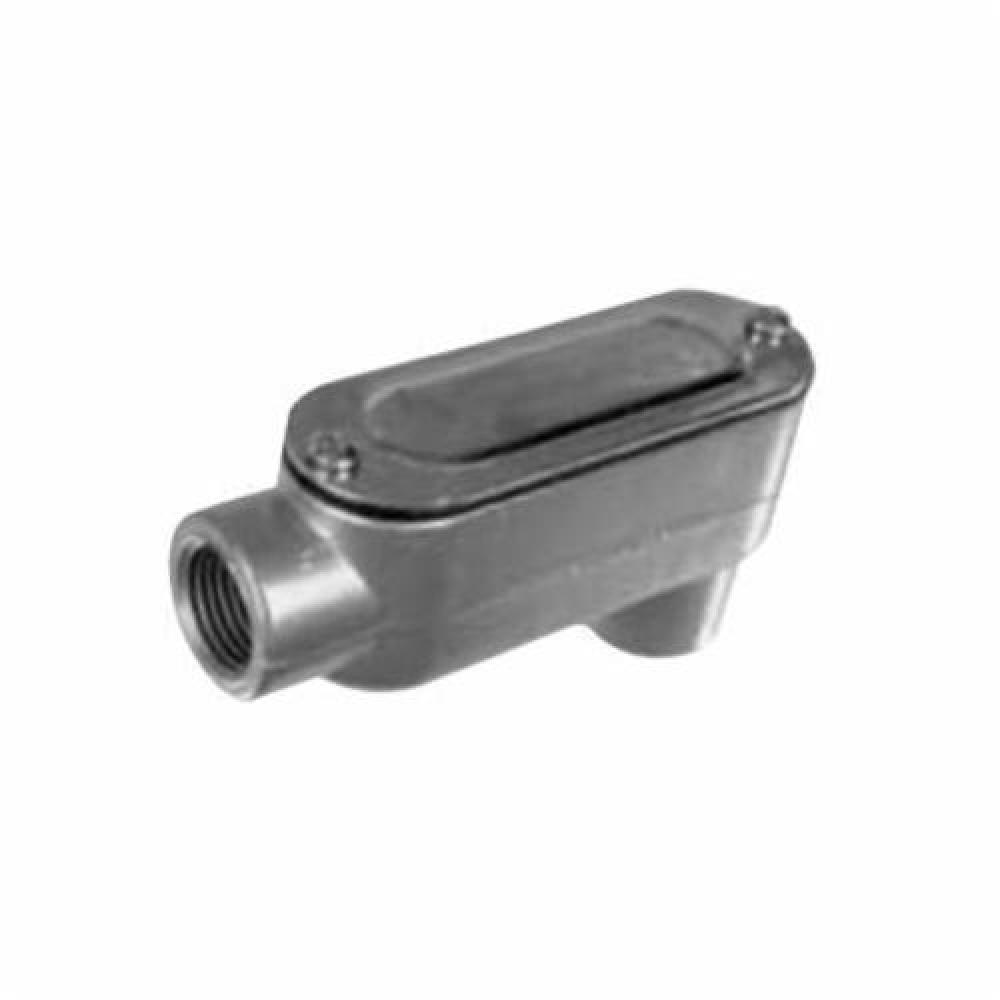

Topaz® LB8CG Type LB 3-Conductor Conduit Body with Cover and Gasket, 3 in Hub, Die Cast Aluminum
Specifications
Details
Category Level 1:
Conduit & Conduit Fittings
Category Level 2:
Conduit Bodies
Category Level 3:
Conduit Bodies - Type LB
Application:
For providing access to conductors for pulling, slicing and maintenance and concrete and wet locations
Category Name:
Conduit Bodies - Type LB
Connection Type:
Tapered FNPT
Country:
USA
Dimensions:
12.5 in L x 4.45 in W x 5.675 in H
Enclosure:
NEMA FB-1
Hub Size:
3
3 in
Length:
13.0
Material:
Die Cast Aluminum
Mounting Type:
Wall
Number of Hubs:
2
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 514B/E170258|CSA Certified|Federal Specification A-A-50563|ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
Type:
Type LB 3-Conductor
Unspsc:
39131708
Volume:
0.0
Weight:
7.0
Additional Information
Manufactured By:
Topaz
