Topaz LB9CG

Topaz LB9CG by Topaz

Call for Price
  • Part Number: LB9CG
  • UPC: 00751338209213
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

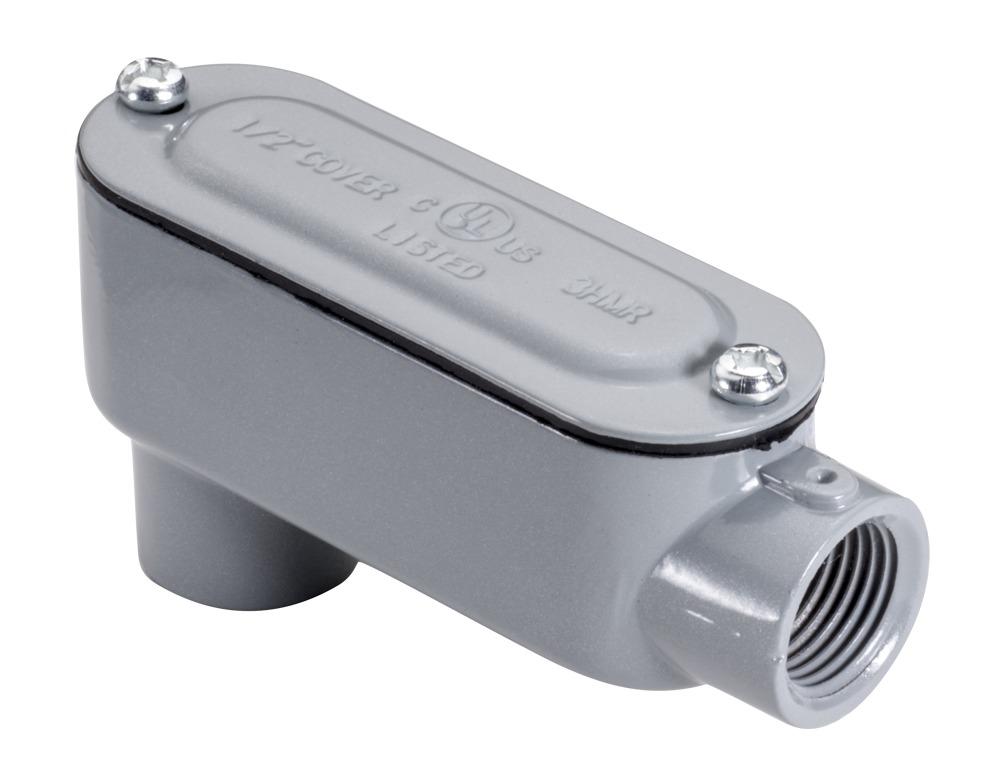

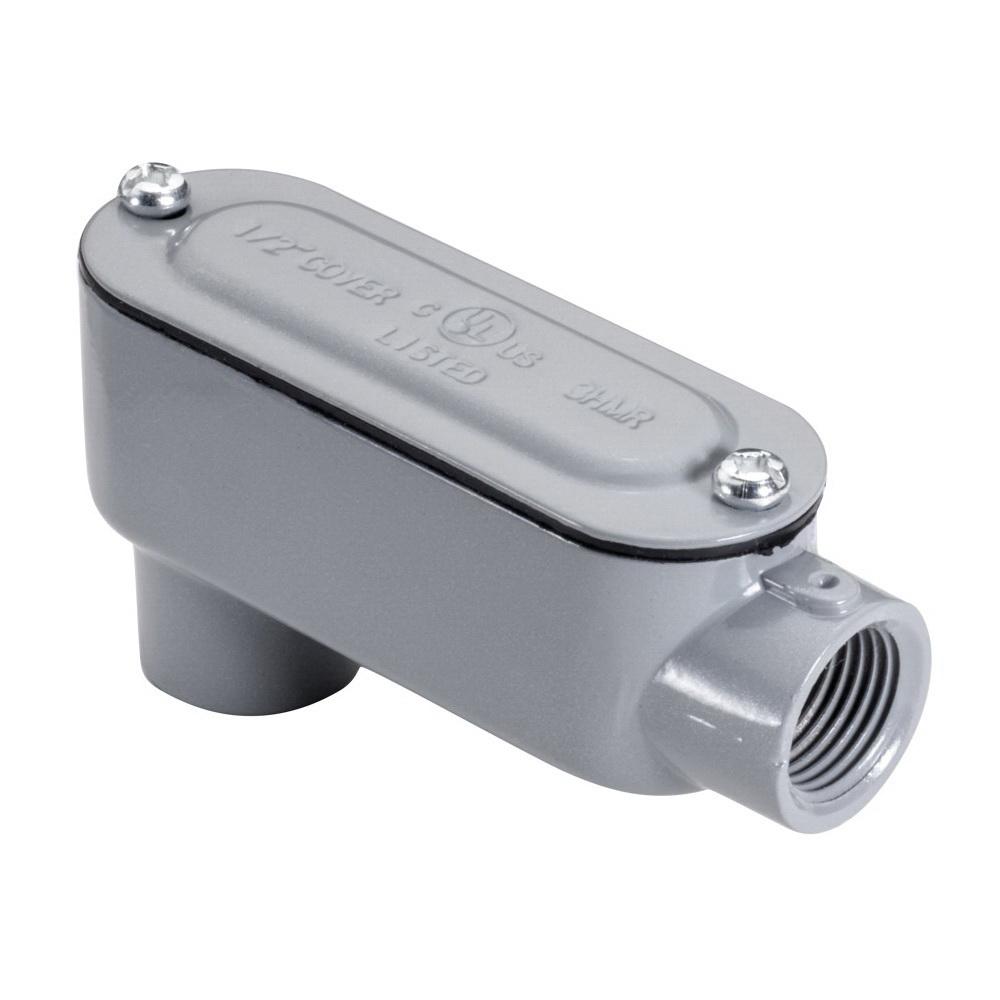

Topaz® LB9CG Type LB Conduit Body With Stamped Steel Cover, Neoprene Rubber Gasket, 3-1/2 in Hub, Die Cast Aluminum, Powder Coated
Specifications
Details
Category Level 1:
Conduit & Conduit Fittings
Category Level 2:
Conduit Bodies
Category Level 3:
Conduit Bodies - Type LB
Application:
For use with rigid conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
Category Name:
Conduit Bodies - Type LB
Connection Type:
FNPT
Country:
USA
Dimensions:
15.5 in L x 5.5 in W x 6.922 in H
Finish:
Powder Coated
Hub Size:
3-1/2
3-1/2 in
Length:
16.0
Material:
Die Cast Aluminum
Mounting Type:
Wall
Number of Hubs:
2
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, UL 514A and UL 514B, UL File No. E170258, cULus File No. E195124, CSA Certified, Federal Specification No. A-A-50563, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
Type:
Type LB
Unspsc:
39131708
Volume:
0.0
Weight:
6.0
Additional Information
Manufactured By:
Topaz
