Topaz LR5G7

Topaz LR5G7 by Topaz

Call for Price
  • Part Number: LR5G7
  • UPC: 00751338869493
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

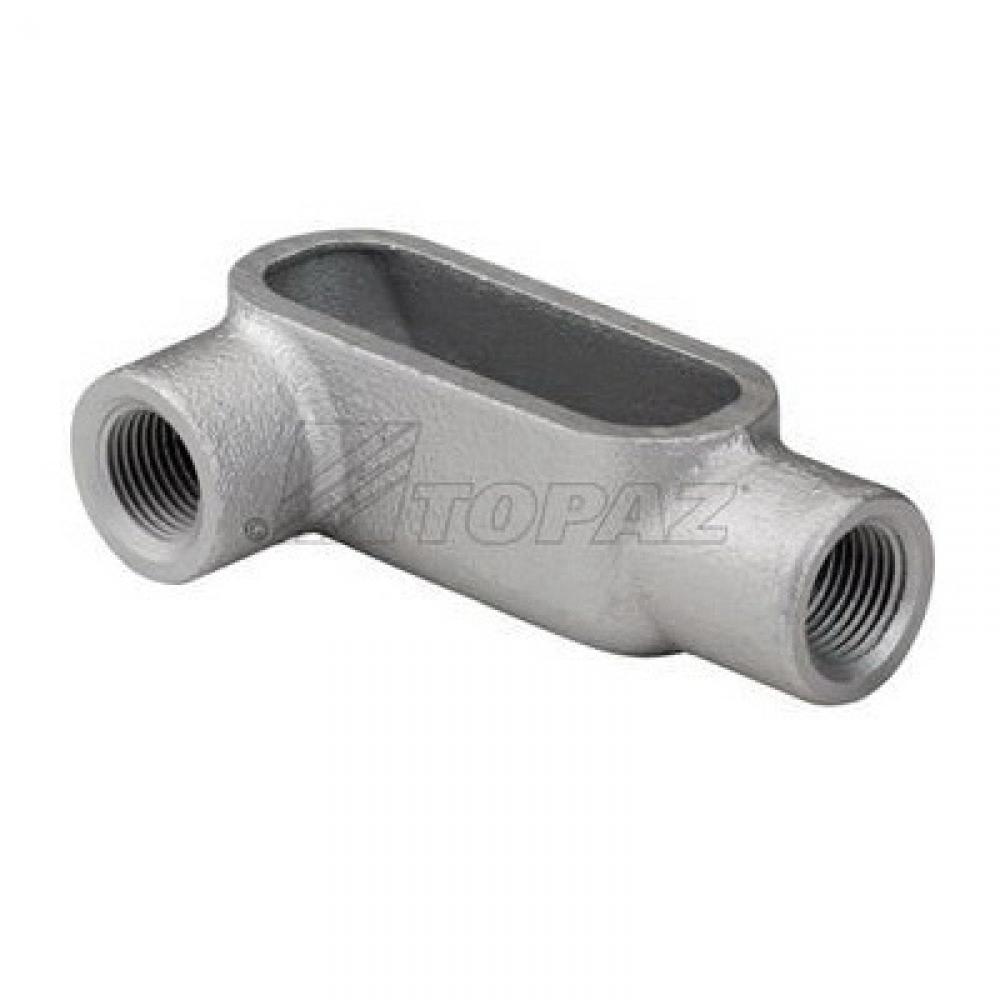

Topaz® LR5G7 Type LR Conduit Body, 1-1/2 in Hub, Form 7, 24 cu-in, Iron, Zinc Plated
Specifications
Details
Category Level 1:
Conduit & Conduit Fittings
Category Level 2:
Conduit Bodies
Category Level 3:
Conduit Bodies - Type LR
Application:
Act as pull outlet for conductors being Installed, make 90 deg bends in conduit system, provide openings for making splices, taps in conductors, connect and change direction of conduit runs, provide access to conductors for maintenance, future system and r
Capacity:
24
24 cu-in
Category Name:
Conduit Bodies - Type LR
Color:
Gray
Connection Type:
FNPT
Country:
USA
Dimensions:
7.1 in L x 2.6 in W x 3.4 in H
Finish:
Zinc Plated
Form:
Form 7
Hub Size:
1-1/2
1-1/2 in
Length:
14.0
Material:
Iron
Mounting Type:
Wall
Number of Hubs:
2
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, UL 514A and UL 514B, cULus File No. E195124, NEMA FB-1, NEMA 3R, Federal Specification No. A-A-50563, NEC 2014 501.10(B)(4), ASTM B117
Type:
Type LR
Unspsc:
39131708
Volume:
0.0
Weight:
32.0
Additional Information
Manufactured By:
Topaz
