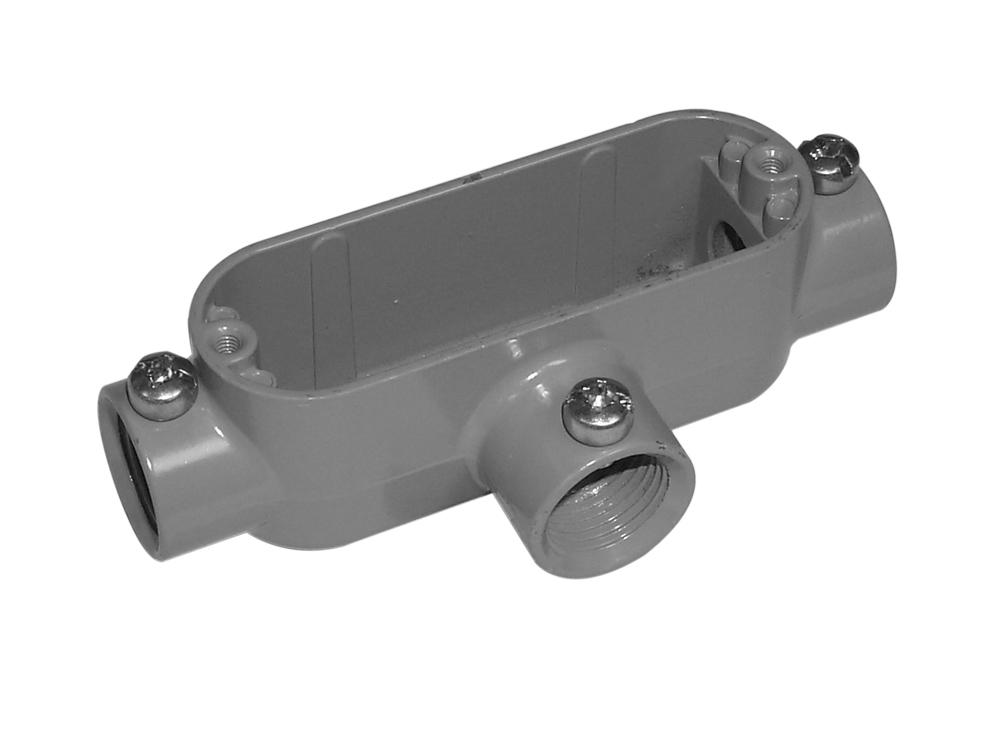

Topaz® T3SS Type T Combination Conduit Body, 1 in Hub, Die Cast Aluminum, Powder Coated
Specifications
Details
Category Level 1:
Conduit & Conduit Fittings
Category Level 2:
Conduit Bodies
Category Level 3:
Conduit Bodies - Type T
Application:
For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
Category Name:
Conduit Bodies - Type T
Connection Type:
FNPT
Country:
USA
Dimensions:
7.06 in L x 2.56 in W x 1.88 in H
Finish:
Powder Coated
Hub Size:
1
1 in
Length:
7.0
Material:
Die Cast Aluminum
Mounting Type:
Wall
Number of Hubs:
3
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, UL File No. E170258, CSA Certified, UL 514B, Federal Specification No. A-A-50563, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
